Product Description
Trunnion Ball Valve are manufactured to the latest edition of API Standard 6D and tested to API Standard 598.
Applicable Standards:
– Ball Valve design according to BS5351, API6D, API608, ASME B16.34
– Face to Face ASME B16.10, API6D
– End Flanged ASME B16.5/ASME B16.47
– Butt Welded ends ASME B16.25
– Fire Safety API607, API6FA
– Inspection and test API598, API6D
Rating:
– ASME CL150, CL300, CL600
Temperature Range:
– -196°C~650°C
Size Range:
– 2″~48″
End Connection:
– Flanged
Body Material:
– Carbon steel, stainless steel, alloy steel, duplex steel
Operation:
– lever, gear, electric, pneumatic, hydraulic, gearbox

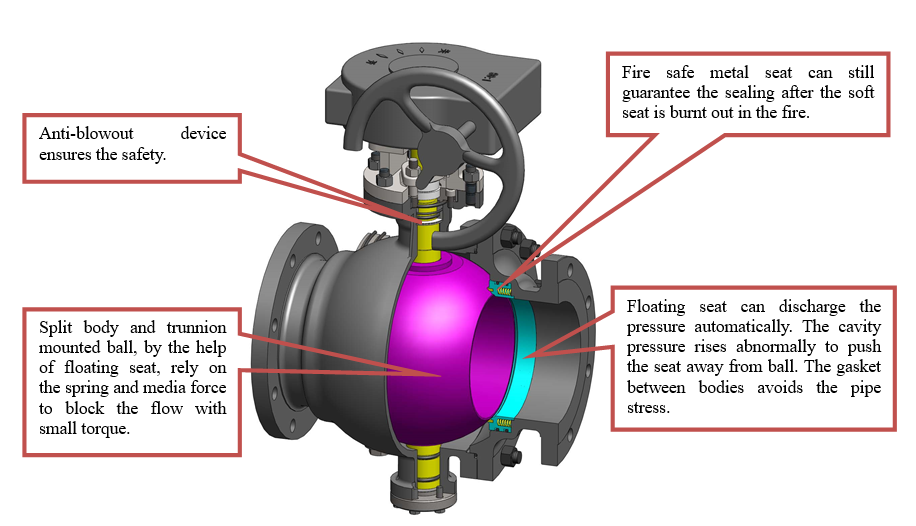

Design Description:
– Structure : 2 pieces or 3 pieces body
– High shut-off sealing mechanism and low torque operation
– Block and bleed function
– Self-cavity pressure relief
– Fire safe design
– Blow out proof stem construction
– Anti-static design
– Locking device (for lever handle operation)
– ISO 5211 actuator mounting
– Emergency grease injection (option)
– PN design can be available
